Brand: M/A-COM
Manufacturer code: 7530-6412-01
Order code: SW-SMA-04

Electromechanical coaxial relay, SPDT, 28V

Product conditions: A
$88.53
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
13 pcs ready to ship
Volume discounts
Quantity Unit Price You save
1+ $88.53 -
3+ $84.99 4%
6+ $82.04 7%
10+ $79.68 10%
(VAT tax not included)
Compliance
Country of origin US
EU Tariff Code 85364110
Weight 34.00 g
RoHS No
REACH Not available
  • RF and high frequency
  • coaxial
  • SPDT
  • 28 V
  • 60 W
  • 18 GHz
  • 50 Ohm
  • SMA female
  • No

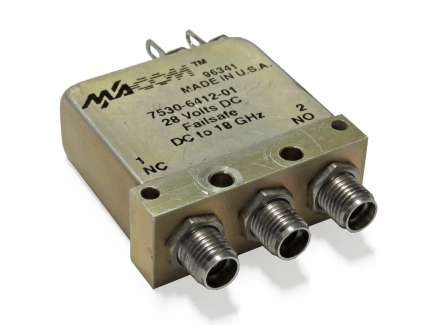

Electromechanical coaxial relay, SPDT, 28V

Specified dc- 18 GHz but usable up to 26.5 GHz, equipped with TTL out.

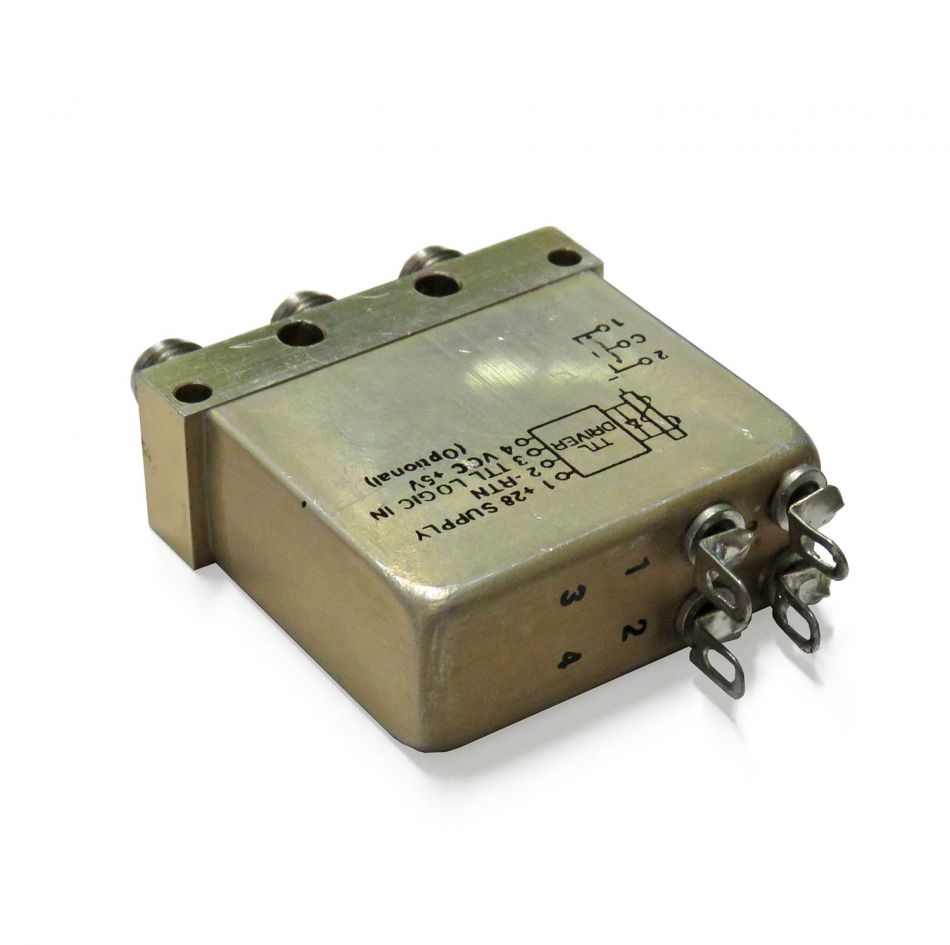

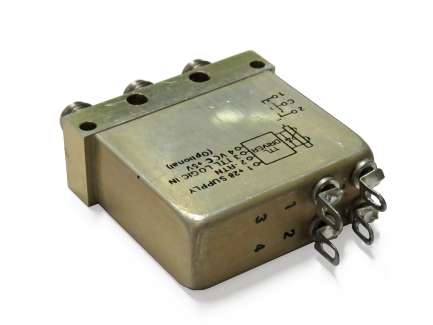

Power supply:
+28V 100mA - pin 1 (100mA current is present only when the relay is switched)

TTL logic in
+5V 10mA - pin 3 (10mA current is present only when the relay is switched)

TTL out
0V - pin 4 (not switched)
+5V - pin 4 (switched)

SW-SMA-04
/
  Title Dimension
Datasheet 42.6 kB
