Brand: Fair-Rite
Manufacturer code: 2643540002
Order code: TF-98

Round cable ferrite bead

Product conditions: N
$1.62
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
1480 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $1.62 $1.62
10+ $1.45 $14.51
50+ $1.36 $68.18
100+ $1.15 $115.46
250+ $1.03 $258.41
500+ $0.89 $445.34
(VAT tax not included)
Compliance
Country of origin CN
EU Tariff Code 85049011
Weight 18.00 g
RoHS Yes
REACH SVHC not present
  • 43
  • 800
  • 105 Ohm @ 10 MHz
    171 Ohm @ 25 MHz
    250 Ohm @ 100 MHz
    255 Ohm @ 250 MHz
  • 14.3 mm
  • 6.35 mm
  • 28.6 mm
  • 0.562 in
  • 0.25 in
  • 1.125 in

Round cable ferrite bead

Common applications:

  • Impedance matching
    In power HF transformers on the output of MOS-FET or bipolar transistors, the maximum power is estimated at about 200/400W, see application example

  • Choke and EMI filter up to 500 MHz
    Typical impedance
    Frequency 1 turn 3 turns
    10 MHz 105Ω 900Ω
    25 MHz 171Ω 1539Ω
    100 MHz 250Ω 650Ω
    250 MHz 255Ω 250Ω

  • Common mode rejection choke on coaxial cables
    When on the screen of a coaxial cable there is a RF current it is necessary to include a common mode choke, this situation often happens when you change from an unbalanced impedance  to a balanced one (coaxial cable on balanced dipole antenna). This ferrite is compatible with all coaxial cables up to 6mm diameter including RG58, RG223, RG142, etc..., for this application it is recommended a choke impedance of at least 10 times higher than that of the coaxial cable

Example of application on coaxial cable

Test conditions: 1m RG58, 35x TF-98
1200Ω @ 1.8 MHz
2600Ω @ 3 MHz
2000Ω @ 10 MHz
900Ω @ 21 MHz
700Ω @ 30 MHz

TF-98
/
  Title Dimension
Datasheet 180.1 kB
Do login to add your comment

Related products

Coaxial cable RG223/U, 50Ω, PE, 5.4mm, double shield
Order code: RG223Q
QAXIAL RG223/U
Stock: 2725 mts
Price each
$3.46
Volume discounts
$3.07
$2.78
$2.58
$2.43
$2.34
$2.25
(VAT tax not included)
Minimum: 1
Multiple: 1

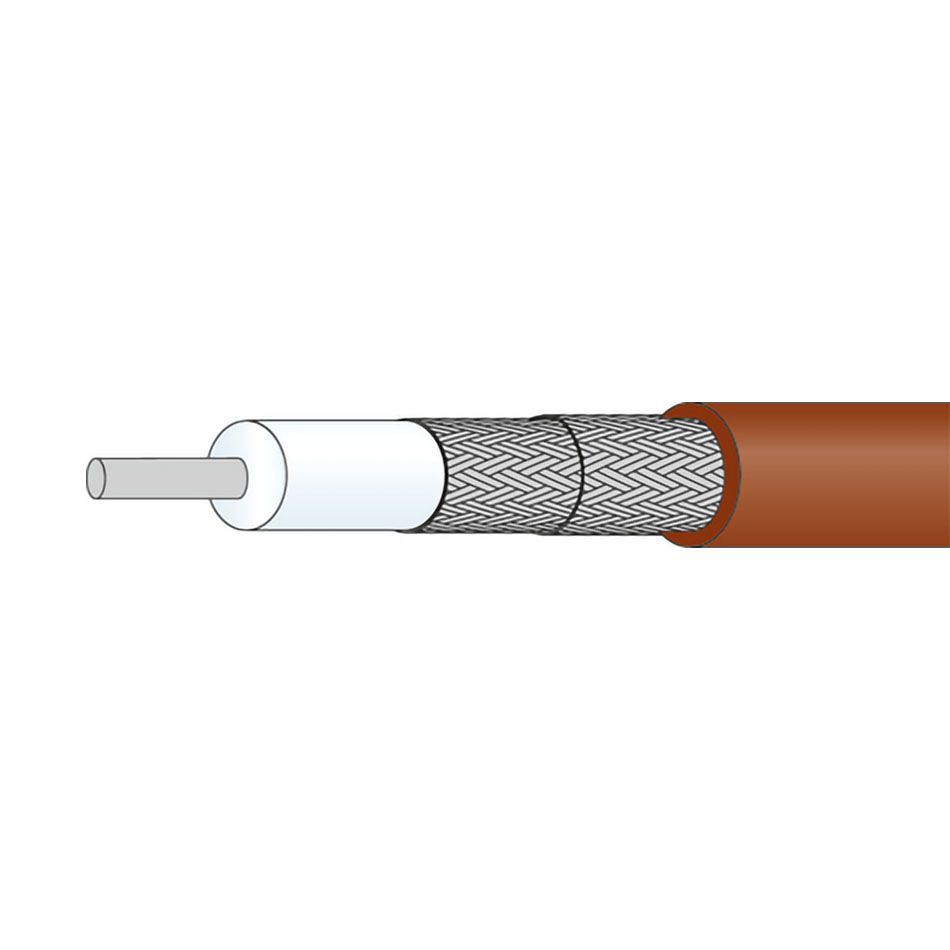

Coaxial cable RG142B/U, 50Ω, PTFE, 4.95mm, double ...
