Brand: Coilcraft
Manufacturer code: 8141-812-400
Order code: BV-8141

Tunable RF coil

Product conditions: N
$1.18
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Stock
4967 pcs ready to ship
Volume discounts
Quantity Unit Price You save
1+ $1.18 -
10+ $1.08 8%
30+ $1.00 15%
100+ $0.94 20%
250+ $0.88 25%
500+ $0.82 30%
1000+ $0.77 35%
2500+ $0.71 40%
(VAT tax not included)
Compliance
EU Tariff Code 85045000
Weight 2.00 g
RoHS No
REACH Not available
  • 4 µH
  • 8 µH
  • 16 + 8 turns // 70 pF
  • 45
  • 7 MHz
  • LC circuit
  • thru-hole
  • 7 mm
  • 16 mm
  • Yes

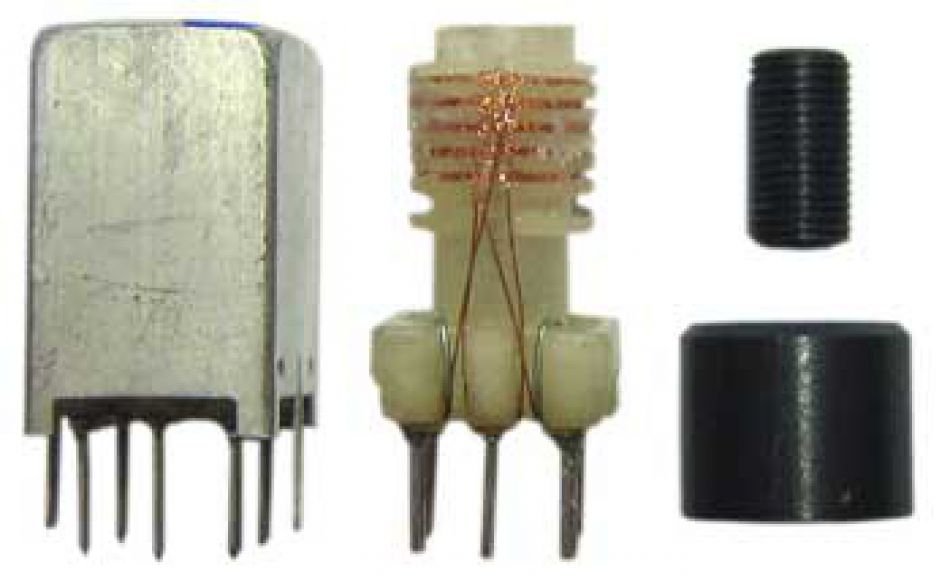

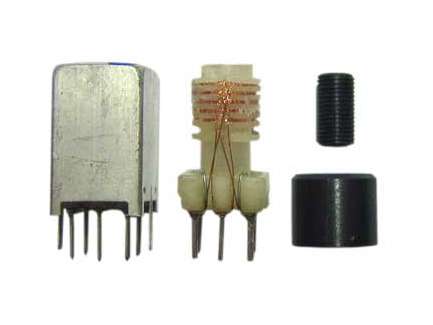

Tunable RF coil

Coil Q > 45 (6.5 µH at 7 MHz), the inductance value is the sum of 16 + 8 windings with a capacity of 70 pF, resonance L+C = 6 - 9 MHz, if it will be used as resonant circuit the max. frequency will be about 8.5 MHz.
