Electromechanical relay, SPDT, 5V

• Application:
  RF and high frequency
• Configuration:
  PCB mount
• Contact type:
  SPDT
• Max. switching current:
  0.5 A
• Coil voltage :
  5 V
• Coil resistance:
  125 Ohm
• Max. power handling:
  10 W
• Max. frequency:
  3 GHz
• Connector type:
  pin
• Latching switch:
  Yes

Electromechanical relay, SPDT, 5V

Very good characteristics up to 3 GHz

• > 70 dB isolation, < 0.1 dB insertion loss @ 400 MHz
• > 50 dB isolation, < 0.6 dB insertion loss @ 2000 MHz

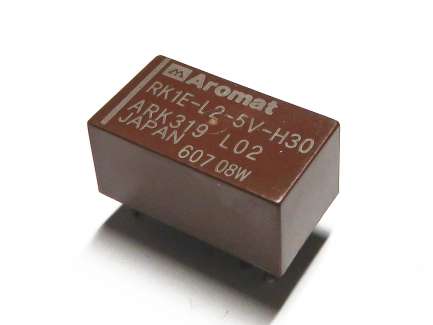

RK1 is an electromechanic coaxial relay. It can look like a common relay for p.c.b. but the internal mechanic is very refined and designed to reach a high isolation and a very low loss. It has SPDT contact (two ports switch) and it is available with standard or latching coil. Aside there is a test report on isolation and insertion loss that we made in our lab.
A high value of isolation is reached because the open contact is two times isolated from the common by two ground pins. Standard RK1 electric diagram (non-latching)
