| 300-10708 | |
|---|---|
 Brand: Amphenol RF
Manufacturer code: 300-10708
Order code: SW-BNC-01

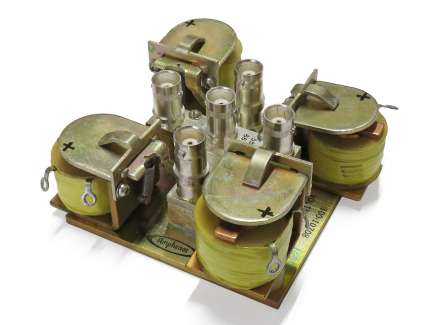

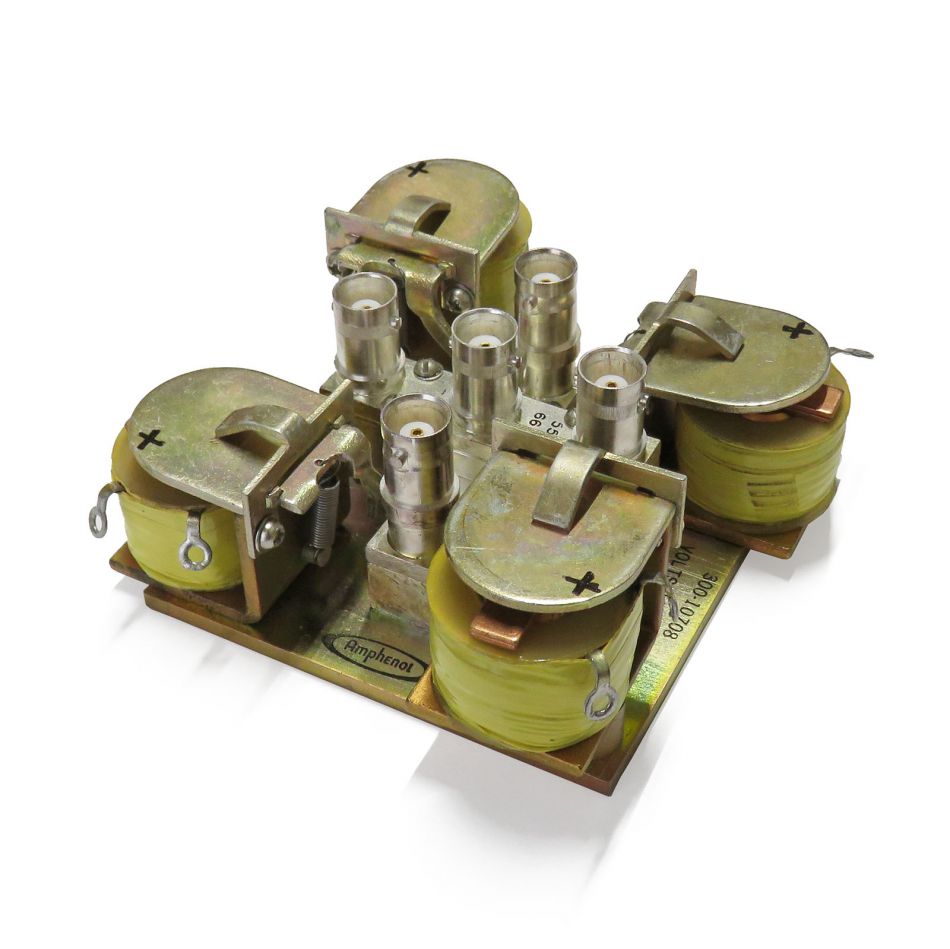

Electromechanical coaxial relay, SP4T, 40Vdc/115Vac, 1GHz
Product conditions: N-
|
|
Electromechanical coaxial relay, SP4T, 40Vdc/115Vac, 1GHz
This relay is powered by direct current from 38 to 50V with an average absorption of 70mA (40V) or alternating current from 110 to 115V with an absorption of 55mA.
No contact is enabled when no coil is powered.
SPECIFICATIONS:
- Maximum power (non switching):
--- 200W @ dc - 50 MHz
--- 100W @ 50 - 300 MHz
--- 50W @ >300 MHz
- Insulation:
--- >65 dB @ 50 MHz
--- >50 dB @ 150 MHz
--- >30 dB @ 450 MHz
- Insertion loss:
--- <0.1 dB @ 50 MHz
--- <0.15 dB @ 150 MHz
--- <0.2 dB @ 450 MHz
-
RF and high frequency
-
coaxial
-
SP4T
-
40 V
-
200 W
-
1 GHz
-
50 Ohm
-
BNC female
-
No
No document found
-
TW
-
85364110
-
605.00 g
-
No
-
Not available
